| Engine Model: | 168FA JCQ200 | Type: | Single-cylinder,4-stroke,OHV,25 Tilt |
|---|---|---|---|
| Cooling Method: | Forced Air Cooled | Working Volume（cm3）: | 26.1 |
| Overall Dimensions(L*W*H)(mm): | 305*365*340 | Certificate: | ISO 9001:2008 |

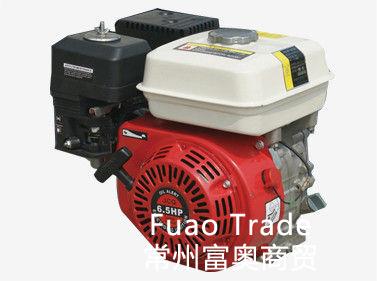

Single cylinder Air Cooled Gasoline Engine / 4 stroke cycle gasoline engine
Specifications:
168FA JCQ200 AIR COOLING GASOLINE ENGINE
|
Engine model |
168FA JCQ200 |
||
|
Type |
Single-cylinder,4-stroke,OHV,25 tilt |
||
|
Cooling method |
Forced air cooled |
||
|
Working volume(cm3) |
26.1 |
||
|
The main performance parameters |
Rated output(kW) |
3.6 |
4 |
|
Rated speed(r/min) |
3000 |
3600 |
|
|
Maximum torque(N*m) |
10.8 |
||
|
Maximum torque speed(r/min) |
2500 |
||
|
Iding steady speed(r/min) |
<=2400 |
|
|
|
Fuel consumption rate(g/( kW *h)) |
<=395 |
|
|
|
Lubricating oil consumption rate(g/( kW *h)) |
<=6.8 |
|
|
|
Noise(dB(A)) |
<=108 |
|
|
|
The main structure parameters |
Bore(mm) |
68 |
|
|
Stroke(mm) |
54 |
||
|
Displacement(ml) |
196 |
||
|
Compression ratio |
8.5 |
||
|
Rotation direction |
Counterclockwise |
||
|
Value clearance |
Intake value(mm) |
0.10+(-)0.02 |
|
|
(Cold) |
Exhaust value(mm) |
0.15+(-)0.02 |
|
|
Starting system |
Recoil/Electric start |
||
|
Governor Type |
Centrifugal mechanical |
||
|
Lubrication Type |
Splash |
||
|
Overall Dimensions(L*W*H)(mm) |
305*365*340 |
||
|
N.W(kg) |
16 |
||
|
Matching accessories |
Spark plug type |
F6TC |
|
|
Ignition type |
(T.C.L) |
||
|
Carburetor type |
Float type |
||
|
Air filter type |
Dry-type |
||
|
Fuel and lubricants |
Fuel No. |
No.93 |
|
|
Fuel tank capacity(L) |
3.6 |
||
|
Lube oil No. |
SAE10W30 |
||
|
Lubrication oil capacity(L) |
0.6 |
||
