Tractor Spare Parts

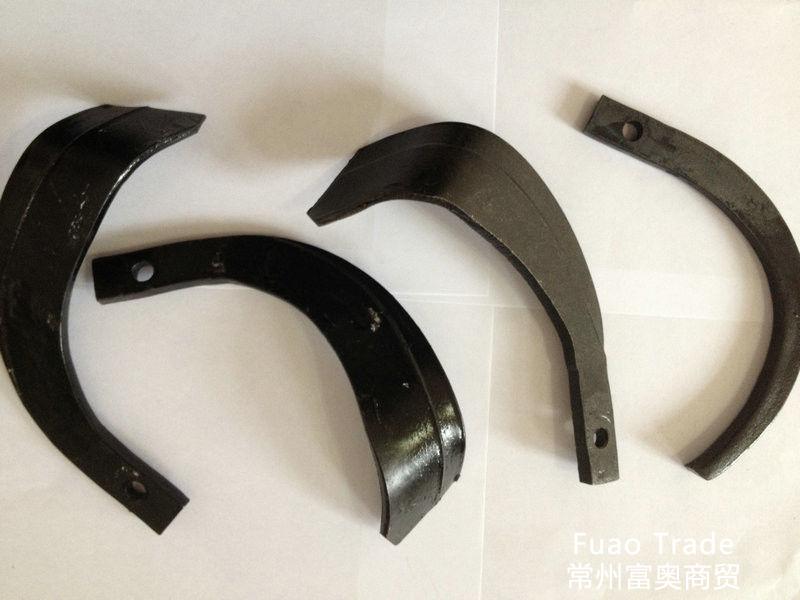

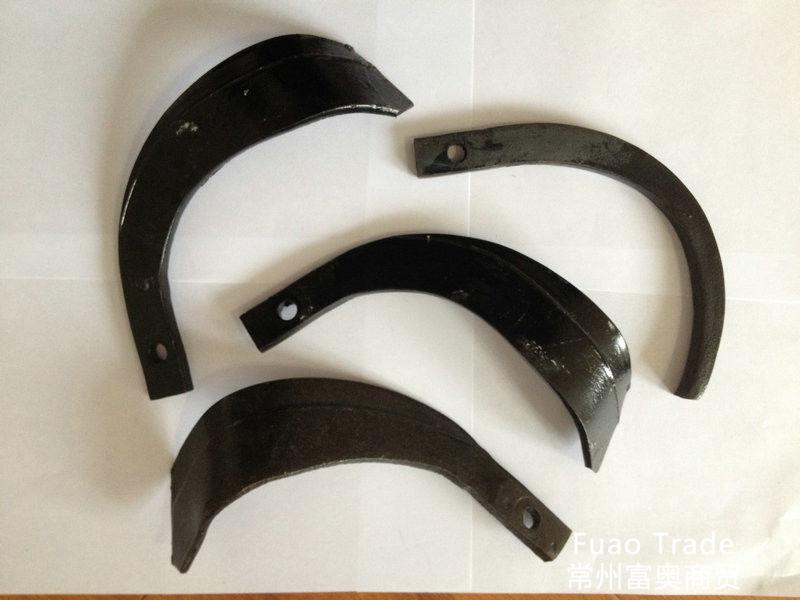

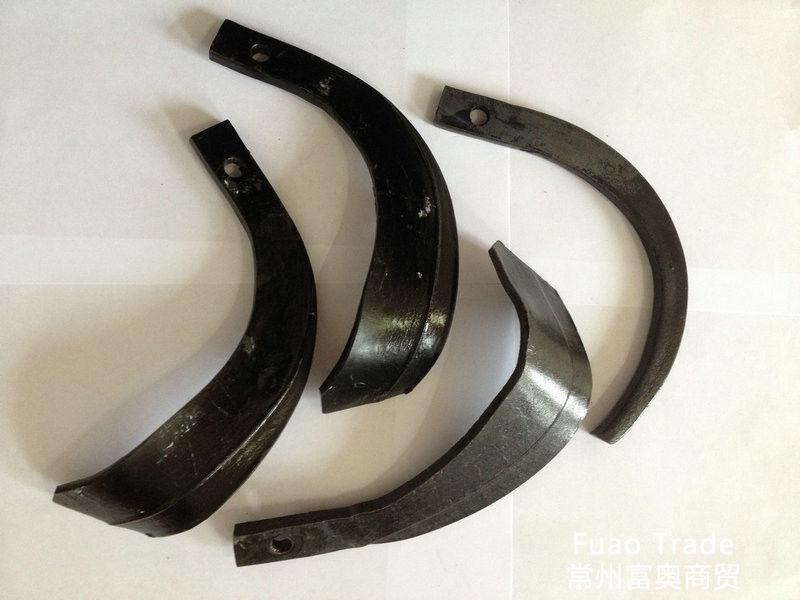

  • Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg
  • Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg
  • Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg
Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kgSpring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kgSpring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg

Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg

  • Product description: Spring steel 65MN Rotary Tiller Blade For Dry Land 0.45kg - 0.6kg
  • INQUIRY
Type: Blades Use: Tractors
Place Of Origin: Hebei, China Brand Name: FUAO
Thickness: 3-8mm Material: Spring Steel,60Si2Mn

Spring steel 65MN Rotary Tiller Blade For Dry Land  0.45kg - 0.6kg



Quick Detail:

Rotary Power Tiller Blade For Dry Land of different weight: 0.45kg 0.5kg 0.55kg 0.6kg

  • Type: Blades
  • Use: tractors
  • Place of Origin: CHANGZHOU
  • Brand Name: FUAO
  • Name: tiller blade
  • Thickness: 3-8mm
  • Hardness: HRC44-48
  • Package: carton box
  • Material: spring steel,60Si2Mn



Description:

1. Brand: OEM

2. Material: 65MN

3. Weight:0.40kg 0.45kg 0.50kg 0.55kg 0.60kg by your requirements.

4. Hardness:42-48HRC

rotary tiller blade/rotary blade made in Hebei

1. Details of rotary blade (factory):

--------------------------------------------------------------------------------------------

rotary blade :disc type rotary blade series

tool apron type rotary blade series


Price terms:FOB ,CNF,CIF

Main sales market:North America, South America, Eastern Europe, Southeast ,Asia, Mid East,Eastern Asia.


2. Specifications:

--------------------------------------------------------------------------------------------

1). Material:spring steel,60Si2Mn

2). Thickness:3-8mm

3). Hardness:HRC44-48

4). Many types to choose,L,C or round Rotary Blade

5). Package:carton box

6). Small order accepted

7). sureface treatment:stoving varnish,powder coating


3. Specification for one order model for our client

from Southeast Asia

-------------------------------------------------------------------------------------


Model Name: Myanmar 245 double hole rotary blade

Material:  60Si2Mn

Size: 25mm*10mm

Manufacturing process : Cutting material, produce( heat up, moulding, Big Bend, Chamfer), heat treatment,surface treatment, paint, pack


Model

size

Length

swath

pore diameter

pore pitch

bending angle

Weight

245 double hole

rotary blade

25mm*10mm

228mm

50mm

11mm

24mm

127°

0.49kg


4. Chemical Composition and Mechannical Property:

----------------------------------------------------------------------------------------

Rotary blade---Chemical Composition

China

America

Japan

Germany

C

Si

Mn

Cr

P

S

HB≤

60Si2Mn

9260

SUP6

60Si7

0.56-0.64

1.50-2.00

0.60-0.90

≤0.35

0.035

0.035

321

60Si2MnA

9260

SUP7

60Si7

0.56-0.64

1.60-2.00

0.60-0.90

≤0.35

0.025

0.025

321


Applications:

One set two pieces: one is left another one is left.



Competitive Advantage:

1. We can provide free sample

2. Supply OEM Service

3. Factory price

4. Reliable quality

5. Sample supply and prompt delivery

6. We own import & export rights


How to order?

1. Contact with us and let us know which products your are interesting.

2. We make the best quotation for you;

3. You accept our quotation, and confirm the order, we send you proforma invoice for order;

4. You need to sign on it and send back to us by e-mail or fax;

5. You transfer the deposit payment for your order.


Payment! We accept...

1. Always 30%~50% deposit is required for the order;

2. By T/T(Bank wire transfer)

3. By Paypal (8% charge fee need you afford which charged by Paypal)

4. By Western Union

5. L/C, only the 70% balance, and order amount more than $15,000



Delivery & Shipment

1. Generally speaking , we have large stock for every model products. Our delivery time is seven working days after receive deposit payment.

2. When the products are prepare well, we will let you know.

3. After we received the balance, we will arrange the delivery immediately follow your instruction.

4. By ship, By air, By Express(DHL/FEDEX/UPS/TNT)


If you have any more question, please feel free to email us!
